Máy phân loại tỏi

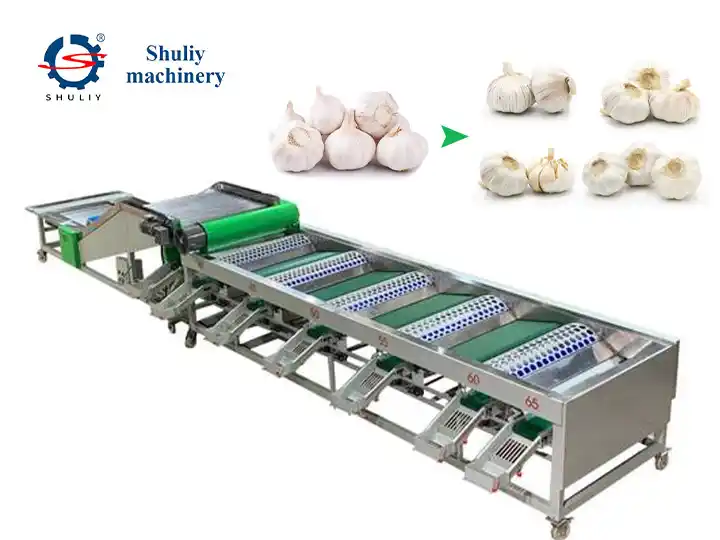

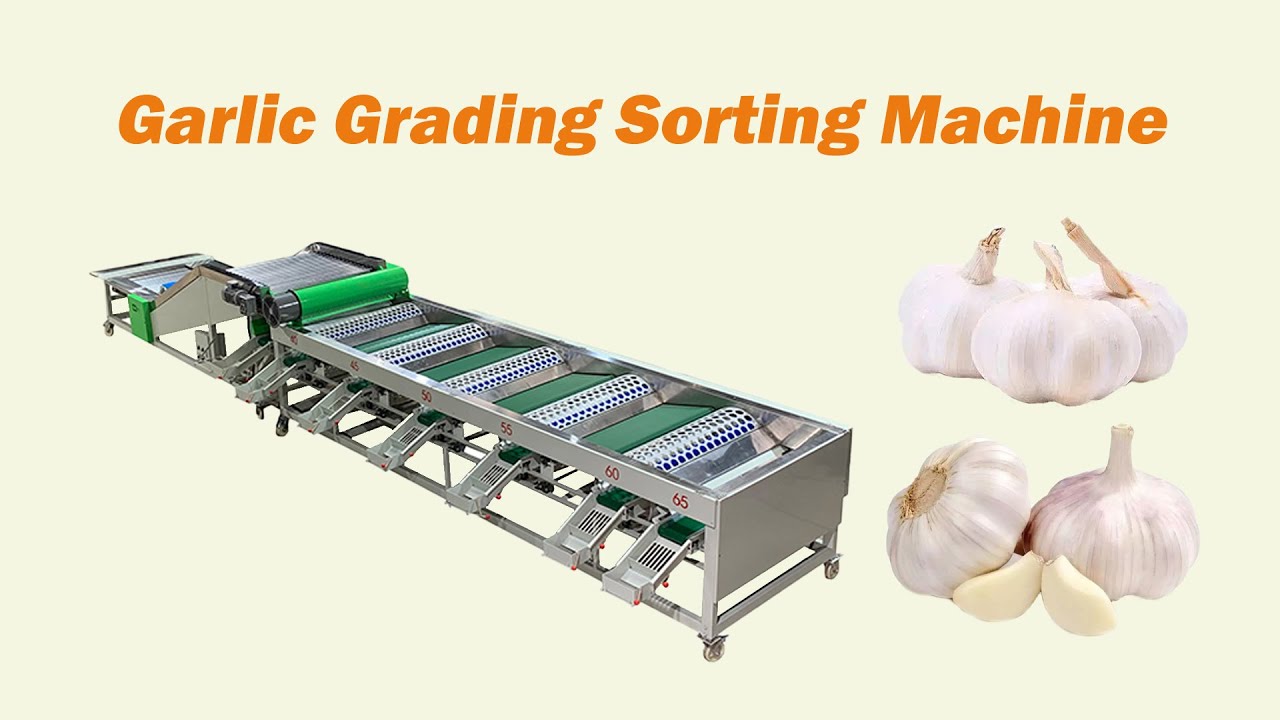

The commercial garlic grading machine uses round holes on the drum to classify garlic. It offers high sorting accuracy without damaging the bulbs, with a capacity of 3–6 tons per hour.

This machine can be used for screening and grading various materials, such as garlic, onion, apples, potatoes, and others.

The commercial garlic sorting machine is mainly composed of a hoist and a sorting machine, and the size of the sieving machine can be customized. The entire machine is made of silicone material, allowing it to directly contact the fruit without damaging it, as it is round and smooth.

This grading machine has been exported to Pakistan, Saudi Arabia, India, Thailand, Italy, and other countries.

Đặc điểm của máy sàng lọc tỏi

• This commercial garlic sorting machine can classify a variety of round materials. Such as potatoes, walnuts, hawthorn, apples, onions, and other round or oval materials.
• Kích thước của việc phân loại có thể được tùy chỉnh.
• Máy phân loại tỏi thương mại chủ yếu bao gồm một thiết bị nâng và thiết bị phân loại, với mức độ tự động hóa cao.
• Băng tải của máy áp dụng quy định tốc độ vô cấp, có thể tự do kiểm soát tốc độ vận chuyển tỏi.
• Máy phân loại trái cây dạng trống này áp dụng cách phân loại theo miệng chuông, giúp khoảng cách giữa các lỗ phân loại được chuẩn hóa hơn.
• The screening part of the drum adopts silica gel to directly contact the raw materials without damaging them.
• With high sorting accuracy, the machine can grade garlic into standard sizes of 4.5 cm, 5.0 cm, 5.5 cm, 6.0 cm, 6.5 cm, and above 6.5 cm. Custom sizes are also available upon request.
• The grading screen is made of PVC mesh, and the feeding table is equipped with brushes to ensure the garlic is not damaged.
• The garlic grading machine offers multiple grading levels. Depending on the processing scale, you can choose 2, 3, 4, or 5 grades, which greatly improves primary garlic processing efficiency.

Nguyên lý làm việc của máy phân loại tỏi thương mại

The machine uses a lifting conveyor to feed garlic into the grading machine. The garlic moves along the conveyor into a grading drum with round holes of increasing sizes. During sorting, garlic falls gradually into the corresponding collection containers by size and then passes through the discharge outlet into packing bags, achieving automated grading and collection.

Cấu trúc của máy phân loại tỏi

The garlic sorting machine mainly consists of a lifting system, a conveying system, a grading device, a collection system, and a control system.

Hệ thống nâng

Machine: Belt elevator

Function: Lifts garlic from the ground or feed inlet to the working height of the grading machine, ensuring continuous feeding

Hệ thống băng tải

Machine: Chain conveyor

Function: Evenly transports garlic to the grading drum or grading wheel

Thiết bị phân loại

Machine: Round-hole drum sieve

Function: Holes increase in size from small to large, sorting garlic by size

Hệ thống thu gom

Machine: Hopper

Function: Collects garlic of different sizes separately

Hệ thống điều khiển

Machine: PLC intelligent control box

Function: Controls the entire machine operation, including motor start/stop and conveyor speed adjustment

Thông số kỹ thuật của máy phân loại tỏi thương mại

If you have more requirements, we can customize the machine according to your needs, such as power voltage, plug type, sieve hole size, or more grading levels. You are welcome to contact us for consultation.

Phân tích ROI của máy phân loại tỏi

After purchasing a garlic grading machine, it is important to consider its return on investment (ROI). The ROI can be evaluated from several aspects: cost input, increased output, labor savings, and added product value. Here, we assume a small to medium-sized garlic paste processing factory with a daily processing capacity of about 4 tons. The above prices are for reference only and do not reflect actual purchase costs.

Doanh thu từ tăng sản lượng

• Original daily output value: 4 tons × $1,000 = $4,000
• Efficiency increase 5% → Additional output value: $4,000 × 5% = $200/day
• Monthly added value (25 days): $200 × 25 = $5,000

Tiết kiệm lao động

• Monthly labor cost savings: $500

Lợi nhuận ròng hàng tháng

• Monthly added value + labor savings – operating cost
• $5,000 + $500 – $2,500 = $3,000/month

Thời gian hoàn vốn đầu tư

• Total investment: $10,000 + $1,000 = $11,000
• Monthly net profit: $3,000
• Payback period = $11,000 ÷ $3,000 ≈ 3.7 months

Kết luận

Under these assumptions, the garlic grading machine can pay back in about 4 months. After that, the increased output and labor savings almost entirely convert to profit, giving a very high return on investment.

Chế biến sâu tỏi

Shuliy has over ten years of production and sales experience and offers a full range of garlic processing machines, including garlic clove splitters, garlic peelers, garlic washers, and more. We can also provide complete solutions for garlic powder and garlic paste production lines. You are welcome to contact us through the pop-up chat for more information.
